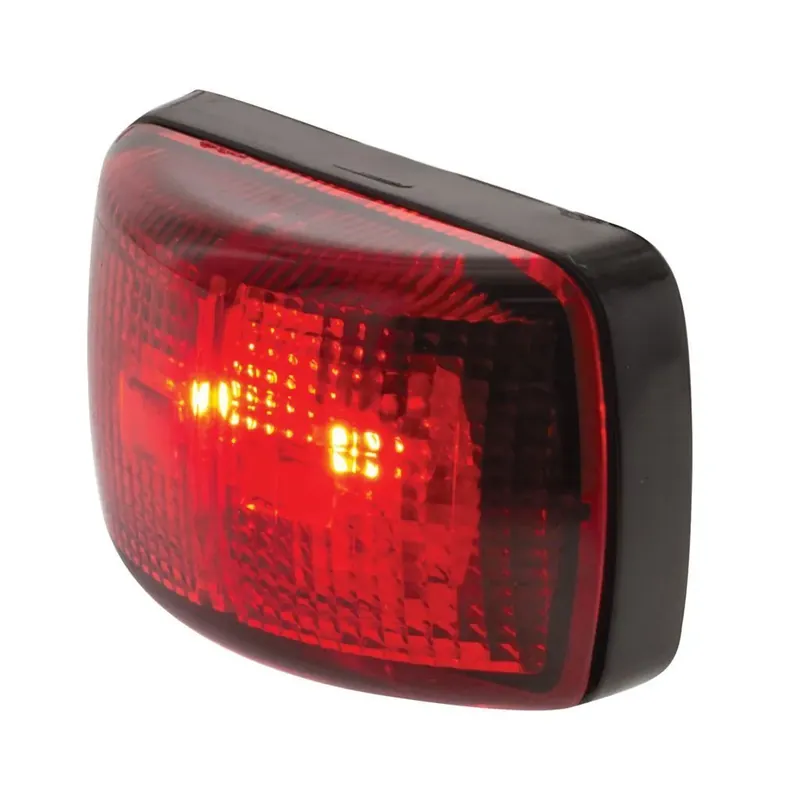

Ignite LED Marker Lamp Red 10-30V 550mm Lead Direct From Factory

Description

Ignite LED Rear End Position Outline Marker Lamp 10 – 30 Volt

• Pre-wired Sheathed 2 Wire 550mm Lead
• 10,000 Hours LED Lifespan
• Fully encapsulated circuitry
• Reverse Polarity Protection
• Sealed against Dust and Moisture
• UV, Water and Shock resistant
• ECE R10, CE Approved and EMC Compliant
• Red Illumination
• ECE R7 and ADR 49/00 Rear Position Lamp specifications approved
• Refer to ADR 13/00 for mounting instructions
• IP67 Rating
• Environment Temperature: -40°C ~ +65°C
• Blister Qty: 1
• 2 Year Warranty
• Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
• The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
• Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431W is the matching Front End
• 2 x High Intensity Red SMD LED’s
• Position Marker Lamp and ISL430A is the matching Side Position Marker Lamp
• Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
• Red Optical PMMA Polycarbonate Lens
• Black ABS Plastic Housing with mounting screws included
• Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation
