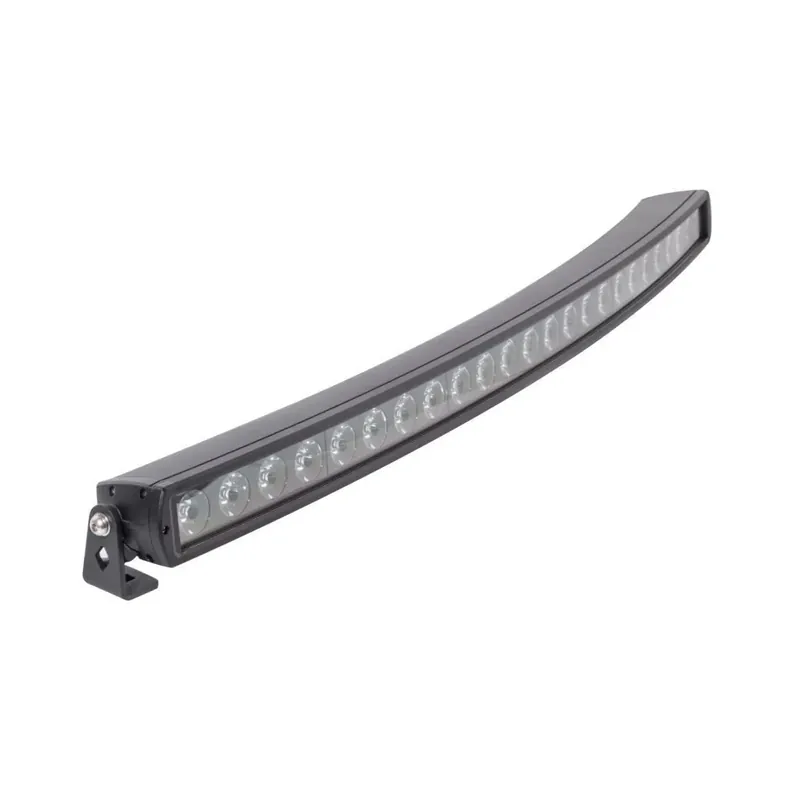

Latest Ignite 51″ LED Curved Lightbar Combo Beam 1300mm

Description

Ignite SX Series Single Row Curved LED Driving Lamp Lightbar 9 – 36 Volt 320 Watt

• Light Transmittance >95%
• Integrated Electronic Thermal Management (ETM)
• Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
• Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Combined Spot (Pencil) and Flood (Spread) Beam Patterns 15 Degrees, 35 Degrees
• Reverse Polarity Protection
• UV, Water and Shock resistant
• 50,000 Hours LED Lifespan
• ECE R112, R10 and CE Approved
• IP68 and IP69K Rating
• Environment Temper

Spare Parts:

• IBB50MM Round Bullbar Mounting Bracket 50mm
• 32 x 10 Watt High Intensity Osram LED’s
• IBB64MM Round Bullbar Mounting Bracket 64mm
• IBB76MM Round Bullbar Mounting Bracket 76mm
• IAS40MM 40mm Spacer Mounting Bracket
• IBB01 Back Mounting Bracket
• IBB02 Spare Bottom Mounting Bracket
• 33,120 Raw Lumens and 6,000K
• 1 Lux @ 519m and 269,361cd Peak Beam Intensity
• Current Draw: 22amp @ 12 Volt and 10.6amp @ 24 Volt
• Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
